Tractors > Cletrac > AG-6

Cletrac AG-6 Engine



Cletrac AG-6 tractor photo
1944 - 1957
Agricultural Crawler tractor
Series map:
AG-6
43.1hp*
*Estimated engine power for comparison only.
Engine Detail
Continental F226
gasoline
6-cylinder
liquid-cooled
Displacement226 ci
3.7 L
Bore/Stroke3.3125x4.375 inches
84 x 111 mm
Fuel systemTillotson 1.125" carburetor
Air cleaneroil bath
Rated RPM1530
Firing order1-5-3-6-2-4
Oil capacity8 qts
7.6 L
Coolant capacity20 qts
18.9 L
Sparkplug gap0.022 inches
0.559 mm

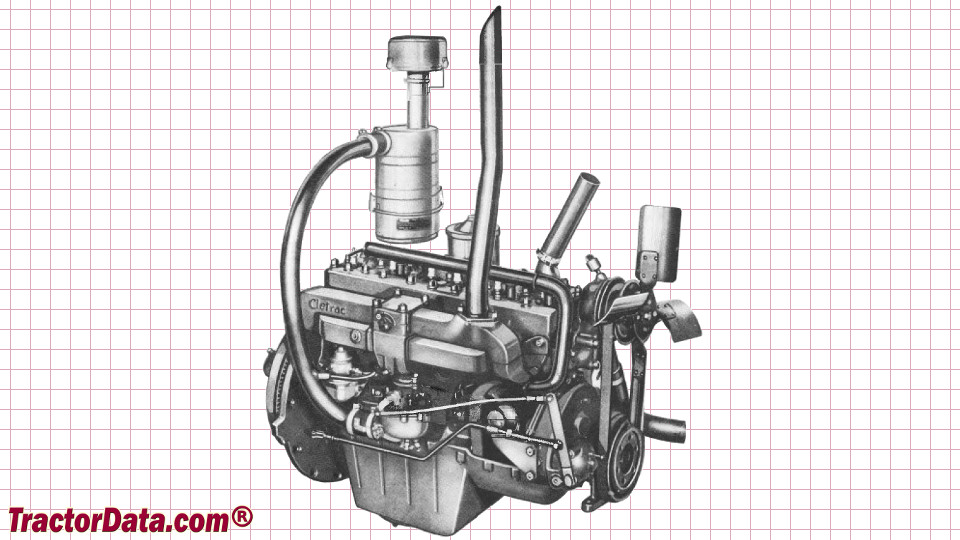

Cletrac AG-6 Engine
Cletrac AG-6 engine image
