Tractors > CaseIH > Farmall 120A

CaseIH Farmall 120A - tests

CaseIH Farmall 120A tractor photo
2012 - 2017   Farmall 100A Series
Model years
Utility tractor
Series next:CaseIH Farmall 125A
Series back:CaseIH Farmall 110A
more CaseIH Farmall 120A specifications...






OCED Tractor Test 2052A:

Nebraska summary:865A

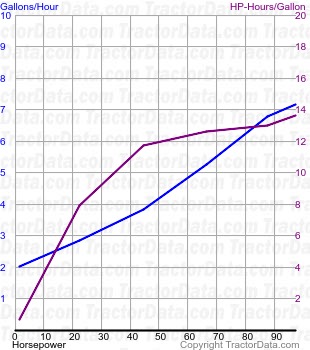

Farmall 120A fuel use from test 865A
Test Date:December 3 - 6, 2012
Type:Diesel 8-speed 4WD
PTO power (max):104.48 hp [77.9 kW]
PTO fuel use (max):6.3 gal/hour [23.8 l/hour]
PTO power (rated engine speed):97.27 hp [72.5 kW]
PTO fuel use (engine speed):7.2 gal/hour [27.3 l/hour]
PTO power (rated PTO speed):101.23 hp [75.5 kW]
PTO fuel use (PTO speed):6.9 gal/hour [26.1 l/hour]
Drawbar power (max):86.68 hp [64.6 kW]
Drawbar fuel use (max):7.2 gal/hour [27.3 l/hour]
Drawbar pull (max):7698 lbs [3491 kg]
Max pull gear:L3
Test report:PDF file
