Tractors > CaseIH > Farmall 120A

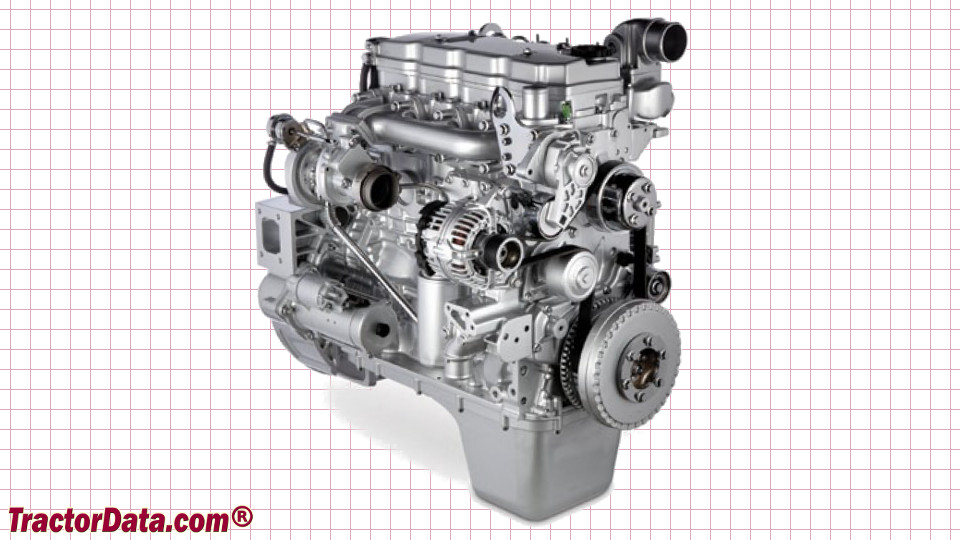

CaseIH Farmall 120A - engine

CaseIH Farmall 120A tractor photo
2012 - 2017   Farmall 100A Series
Model years
Utility tractor
Series next:CaseIH Farmall 125A
Series back:CaseIH Farmall 110A
more CaseIH Farmall 120A specifications...






Engine Detail:

 FPT
 turbocharged diesel
 4-cylinder 8-valve
 liquid-cooled
 273.7 ci [4.5 L]
Bore/Stroke:4.094x5.197 inches [104 x 132 mm]
Emissions:Tier III
Power (gross):118 hp [88.0 kW]
Fuel system:mechanical injection
Starter:electric
Starter volts:12
Oil capacity:11.6 qts [11.0 L]
