John Deere 6170R - transmission

John Deere 6170R tractor photo
2012 - 2014   6R Series
Row-Crop tractor
Next model:John Deere 6175R
Series next:John Deere 6190R
more John Deere 6170R specifications...






Transmission:

Transmission:PowerQuad Plus
Type:partial power shift
Gears:16 forward and reverse
Clutch:hydraulic wet disc
Oil capacity:94.05 qts [89.0 L]
Four power shift gears (1-4) in four synchronized ranges (A-D) with power reverser lever.
Speeds:With 18.4R46 rear tires.

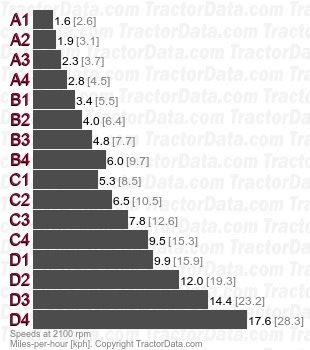

6170R PowerQuad Plus partial power shift speeds


Transmission:

Transmission:AutoQuad Plus Eco
Type:partial power shift
Gears:20 forward and reverse
Clutch:hydraulic wet disc
Oil capacity:94.05 qts [89.0 L]
Speeds:With 18.4R46 rear tires. 40 KPH transmission is electronically limited in E4 and E4 to 40 KPH (26.1 MPH).

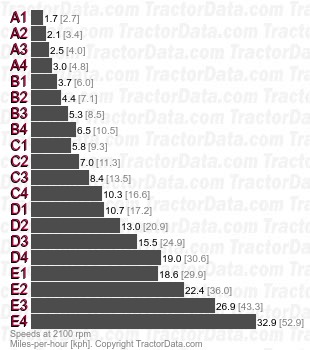

6170R AutoQuad Plus Eco partial power shift speeds


Transmission:

Transmission:AutoPowr IVT
Type:infinitely variable transmission
Gears:infinite forward and reverse
Oil capacity:111 qts [105.1 L]


Transmission:

Transmission:DirectDrive
Type:eight-speed power shift
Gears:24 forward and reverse
