John Deere 6615 Transmission


John Deere 6615 tractor photo
2005 - 2010
Utility tractor
6605
Series:641566157515
Transmissions overview
12-speed fully synchronized
16-speed partial power shift
Transmission
Transmission:John Deere SyncroPlus
Type:fully synchronized
Gears:12 forward and 4 reverse
Clutch:hydraulic wet disc PermaClutch II
Oil capacity:65.5 qts
62.0 L
Oil type:
JD Hy-Gard

Three synchronized gears (1-3) in four synchronized ranges (A-D).
Speeds
With 18.4x34 R1 rear tires.

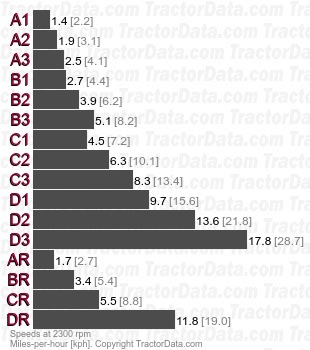

6615 SyncroPlus fully synchronized speeds
Transmission
Transmission:John Deere PowrQuad
Type:partial power shift
Gears:16 forward and reverse
Clutch:hydraulic wet disc PermaClutch II
Oil capacity:65.5 qts
62.0 L
Oil type:
JD Hy-Gard

Four power shift gears (1-4) in four synchronized ranges (A-D).
Speeds
With 18.4-34 R1 rear tires. Reverse speeds are 15% faster than forward speeds.

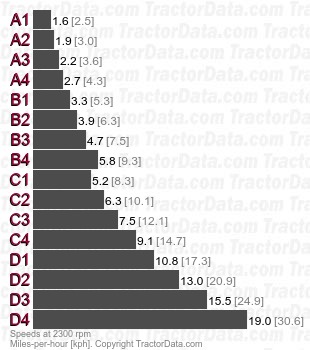

6615 PowrQuad partial power shift speeds
