John Deere 7715 Engine


John Deere 7715 tractor photo
2007 - 2010
Row-Crop tractor
Series:77157815
Engine Detail
John Deere
diesel
6-cylinder
liquid-cooled
Displacement:414 ci
6.8 L
Bore/Stroke:4.19x5.00 inches
106 x 127 mm
Power:182 hp
135.7 kW
Fuel system:DE10 electronic rotary injection
Air cleaner:dry with pre-cleaner
Compression:17:1
Rated RPM:2100
Idle RPM:875-2200
Torque:609.2 lb-ft
826.1 Nm
Torque RPM:1400
Starter volts:12
Coolant capacity:30.9 qts
29.2 L
Engine Oil

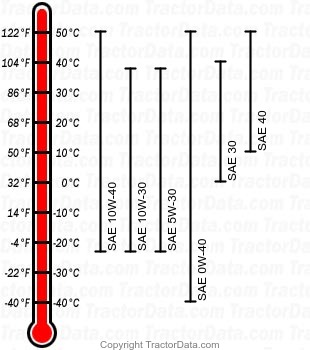

7715 diesel engine oil chart
Oil capacity:27.5 qts
26.0 L
Oil change:250 h
