Cockshutt 1850 Transmission


Cockshutt 1850 tractor photo
1964 - 1969
Row-Crop tractor
Series:175018501950

Note: the Cockshutt model 1850 is the same as the Oliver 1850. The following data is from the 1850 listing.
Transmissions overview
6-speed unsynchronized
12-speed partial powershift
18-speed partial power shift
Transmission
Type:unsynchronized
Gears:6 forward and 2 reverse
Clutch:330mm dry disc
Oil capacity:43 qts
40.7 L
Speeds

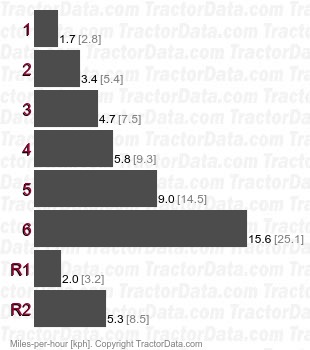

1850  unsynchronized speeds
Transmission
Transmission:Hydra-Power
Type:partial powershift
Gears:12 forward and 4 reverse
Clutch:330mm dry disc
Speeds

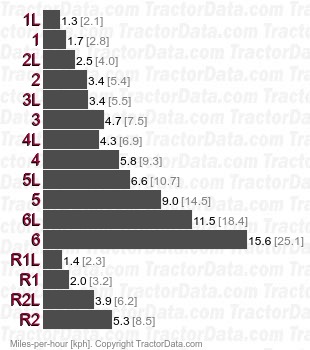

1850 Hydra-Power partial powershift speeds
Transmission
Transmission:Hydraul-Shift
Type:partial power shift
Gears:18 forward and 6 reverse
Introduced in late 1967, the Hydraul-Shift transmission provided an on-the-move shift to underdrive and overdrive.
