Cockshutt 1800 Tests


Cockshutt 1800 tractor photo
1963 - 1964
Row-Crop tractor
Series map:
1600
1800
1900
66.7hp*
85.6hp*
99.3hp*
*Estimated engine power for comparison only.

Note: the Cockshutt model 1800 is the same as the Oliver 1800 Series B/C. The following data is from the 1800 Series B/C listing.
Tractor Tests
NTTL 831: diesel 12-speed 2WD
NTTL 832: diesel 12-speed 4WD
NTTL 839: gasoline 12-speed 2WD
NTTL 846: gasoline 12-speed 4WD
Nebraska Tractor Test 831

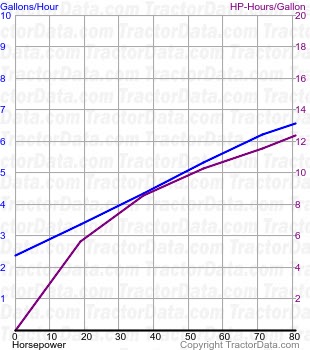

1800 fuel use from test 831
Nebraska Tractor Test 831
Diesel 12-speed 2WD
November 6 - 15, 1962
Link: Nebraska Tractor Test 831 file
PTO performance
Power at rated engine speed77.04 hp
57.4 kW
Fuel use5.5 gal/hour
20.8 l/hour
Drawbar performance
Max power64.53 hp
48.1 kW
Fuel use5.5 gal/hour
20.8 l/hour
Gear 4H used for power test.
Max pull10,783 lbs
4891 kg
Gear 2H used for pull test.
Nebraska Tractor Test 832

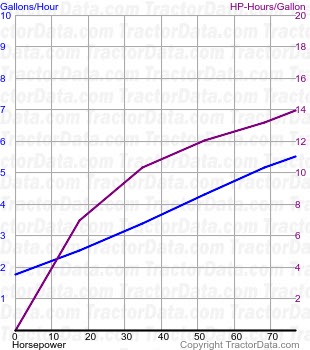

1800 fuel use from test 832
Nebraska Tractor Test 832
Diesel 12-speed 4WD
November 16 - December 1, 1962
Link: Nebraska Tractor Test 832 file
PTO performance
Power at rated engine speed76.97 hp
57.4 kW
Fuel use5.5 gal/hour
20.8 l/hour
Drawbar performance
Max power64.00 hp
47.7 kW
Fuel use5.5 gal/hour
20.8 l/hour
Gear 4H used for power test.
Max pull14,036 lbs
6366 kg
Gear 1D used for pull test.
Nebraska Tractor Test 839

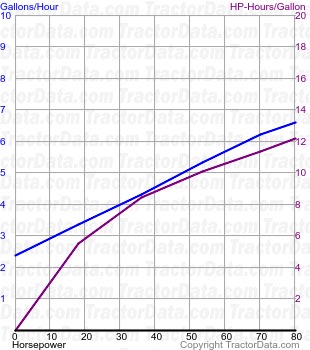

1800 fuel use from test 839
Nebraska Tractor Test 839
Gasoline 12-speed 2WD
May 22 - June 4, 1963
Link: Nebraska Tractor Test 839 file
PTO performance
Power at rated engine speed80.16 hp
59.8 kW
Fuel use6.6 gal/hour
25.0 l/hour
Drawbar performance
Max power67.81 hp
50.6 kW
Fuel use6.9 gal/hour
26.1 l/hour
Gear 4H used for power test.
Max pull10,827 lbs
4911 kg
Gear 2H used for pull test.
Nebraska Tractor Test 846
1800 fuel use from test 846
Nebraska Tractor Test 846
Gasoline 12-speed 4WD
September 10 - 19, 1963
Link: Nebraska Tractor Test 846 file
PTO performance
Power at rated engine speed80.72 hp
60.2 kW
Fuel use6.6 gal/hour
25.0 l/hour
Drawbar performance
Max power68.40 hp
51.0 kW
Fuel use6.5 gal/hour
24.6 l/hour
Gear 4H used for power test.
Max pull14,155 lbs
6420 kg
Gear 1D used for pull test.
