Cockshutt 1600 Tests


Cockshutt 1600 tractor photo
1963 - 1964
Row-Crop tractor
Series:16001800

Note: the Cockshutt model 1600 is the same as the Oliver 1600 Series A. The following data is from the 1600 Series A listing.
Nebraska Tractor Test 840

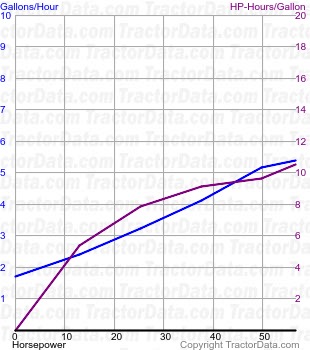

1600 fuel use from test 840
Nebraska Tractor Test 840
Diesel 12-speed 2WD
May 29 - June 13, 1963
Link: Nebraska Tractor Test 840 file
PTO performance
Power at rated engine speed:57.95 hp
43.2 kW
Fuel use:4.2 gal/hour
15.9 l/hour
Power at rated PTO speed:54.79 hp
40.9 kW
Fuel use:3.9 gal/hour
14.8 l/hour
Drawbar performance
Max power:46.90 hp
35.0 kW
Fuel use:4.0 gal/hour
15.1 l/hour
Gear 4-HP used for power test.
Max pull:8,401 lbs
3810 kg
Gear 1-HP used for pull test.
Nebraska Tractor Test 841

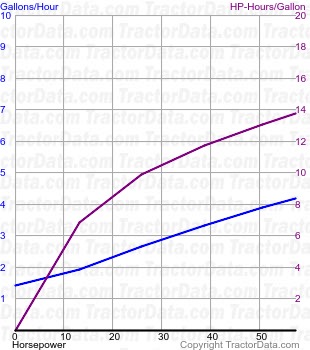

1600 fuel use from test 841
Nebraska Tractor Test 841
Gasoline 12-speed 2WD
June 3 - 13, 1963
Link: Nebraska Tractor Test 841 file
PTO performance
Power at rated engine speed:56.50 hp
42.1 kW
Fuel use:5.4 gal/hour
20.4 l/hour
Power at rated PTO speed:51.18 hp
38.2 kW
Fuel use:5.0 gal/hour
18.9 l/hour
Drawbar performance
Max power:47.09 hp
35.1 kW
Fuel use:5.2 gal/hour
19.7 l/hour
Gear 4-HP used for power test.
Max pull:8,490 lbs
3851 kg
Gear 1-HP used for pull test.
