Tractors > John Deere > 6530

John Deere 6530 - transmission

John Deere 6530 tractor photo
2006 - 2008
Next model:John Deere 6534
Series next:John Deere 6630
more John Deere 6530 specifications...






Transmission:

Transmission:John Deere SyncroPlus
Type:synchronized
Gears:12 forward and 4 reverse
Clutch:dual 225mm wet disc PermaClutch
Oil capacity:52.8 qts [50.0 L]
Three gears (1-3), plus reverse (R) in four ranges (A-D).
Speeds:

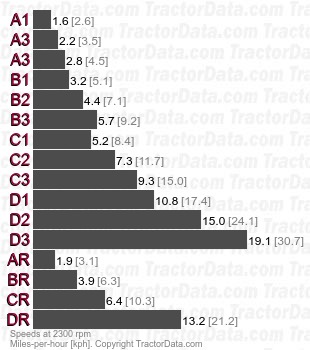

6530 SyncroPlus synchronized speeds


Transmission:

Transmission:John Deere PowrReverser
Type:power shuttle
Gears:16 forward and reverse
Clutch:dual 225mm wet disc PermaClutch
Oil capacity:52.8 qts [50.0 L]
The PowrReverser transmission adds a left-hand shuttle lever to the SynchroPlus transmission. Reverse gear is replaced with a fourth gear in each range. Reverse speeds slightly higher than the matching forward speed.
Speeds:

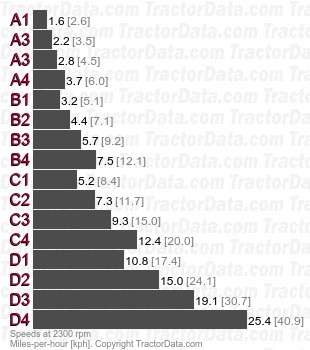

6530 PowrReverser power shuttle speeds


Transmission:

Transmission:John Deere PowrQuad
Type:partial power shift
Gears:16 forward and reverse
Clutch:dual 225mm wet disc PermaClutch
Oil capacity:52.8 qts [50.0 L]
Four gears (1-4) in four ranges (A-D) with left-hand shuttle lever. Power shift between gears. Clutch must be used to shift between ranges. Reverse speeds are slightly higher than forward speeds. Optional creeper provides an additional 12 speeds in ranges A-C, from 0.26 kph to 1.5 kph. PowrQuad Plus provides push-button gear shifting on the range-shift lever.
Speeds:

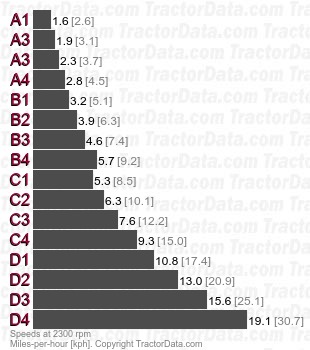

6530 PowrQuad partial power shift speeds


Transmission:

Transmission:John Deere PowrQuad Plus
Type:partial power shift
Gears:24 forward and reverse
Clutch:dual 225mm wet disc PermaClutch
Oil capacity:52.8 qts [50.0 L]
Four gears (1-4) in six ranges (A-F) with left-hand shuttle lever. Power shift between gears. Clutch must be used to shift between ranges. Reverse speeds are slightly higher than forward speeds. Optional creeper provides an additional 12 speeds in ranges A-C, from 0.16 kph to 1.12 kph. PowrQuad Plus provides push-button gear shifting on the range-shift lever.
Speeds:
6530 PowrQuad Plus partial power shift speeds
