Tractors > Bolens > H1502

Bolens H1502 Engine



Bolens H1502 tractor photo
1985 - 1991
Sub-Compact Utility tractor
Iseki built
Engine Detail
Mitsubishi K3A
diesel
3-cylinder
liquid-cooled
Displacement47.2 ci
0.8 L
Bore/Stroke2.56x3.07 inches
65 x 78 mm
Power15 hp
11.2 kW
Air cleanerdry element
Pre-heatingglow plugs
Compression22:1
Rated RPM2600
Torque30.4 lb-ft
41.2 Nm
Torque RPM1800
Starterelectric
Starter volts12
Coolant capacity4.4 qts
4.2 L
Engine Oil

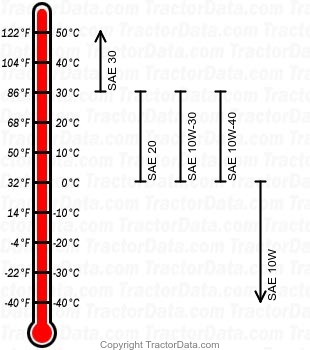

H1502 diesel engine oil chart
Oil capacity2.7 qts
2.6 L
Oil change100 h
