Tractors > Bolens > G174

Bolens G174 - engine

Bolens G174 tractor photo
1978 - 1991
Model years
Sub-Compact Utility tractor
Series back:Bolens G154
more Bolens G174 specifications...






Engine Detail:

 Mitsubishi K3B
 diesel
 3-cylinder
 liquid-cooled
 51.7 ci [0.8 L]
Bore/Stroke:2.67x3.07 inches [68 x 78 mm]
Power:17 hp [12.7 kW]
Air cleaner:dry element
Pre-heating:glow plugs
Rated RPM:2600
Torque:34.7 lb-ft [47.1 Nm]
Torque RPM:1800
Starter:electric
Starter volts:12

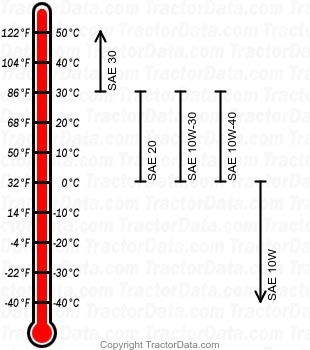

Oil capacity:2.7 qts [2.6 L]
Oil change:100 h
Coolant capacity:4.4 qts [4.2 L]
