Tractors > Bolens > G174

Bolens G174 - transmission

Bolens G174 tractor photo
1978 - 1991
Model years
Sub-Compact Utility tractor
Series back:Bolens G172
more Bolens G174 specifications...






Transmission:

Type:unsynchronized gear
Gears:6 forward and 2 reverse
Clutch:dry disc
Oil capacity:13 qts [12.3 L]
Three gears (1-3) plus reverse (R) with additional high-low range shift. Tractor must be stopped, and clutch used, to shift gears and range.

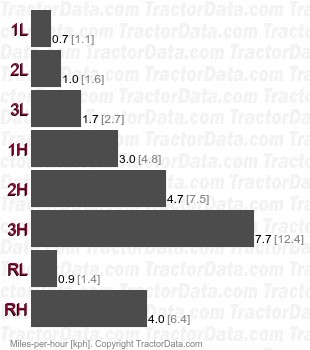

Speeds:
G174  unsynchronized gear speeds
