| | 1939 - 1947 |
| High-Clearance tractor |
|
Series map:
AV
17.8hp*
*Estimated engine power for comparison only.
| Transmission |
| Type | sliding gear
|
| Gears | 4 forward and 1 reverse
|
| Clutch | 9-inch dry disc
|
| Oil capacity | 4 qts
3.8 L
|
| | 5 qts (with PTO)
4.7 L
|

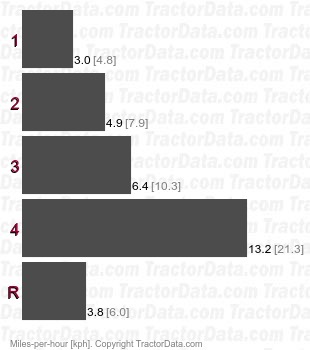

| Speeds |
| With 9-36 rear tires. |
|
| Shift Pattern |
 |
