Simplicity 9528 Transmission


Simplicity 9528 tractor photo
1978 - 1983
9500 Series
Compact Utility tractor
Hinomoto built
Series map:
9523
9528
23.0hp
28.0hp
Transmission options
8-speed unsynchronized gear
12-speed unsynchronized gear
Transmission
Typeunsynchronized gear
Gears8 forward and 2 reverse
Clutch215mm dry disc
Oil capacity26.8 qts
25.4 L
Four gears (1-4) in two ranges (low/high). Tractor must be stopped, and clutch used, to shift gears or range.

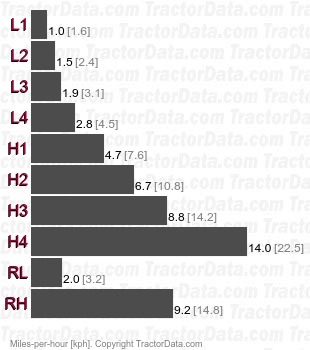

Speeds
With 12.4x24 rear tires.
9528  unsynchronized gear speeds
Shift Pattern
Simplicity 9528 transmission controls
Transmission
Typeunsynchronized gear
Gears12 forward and 3 reverse
Clutch215mm dry disc
Oil capacity22 qts
20.8 L
Four gears, plus reverse, with high, low, and creeper ranges.

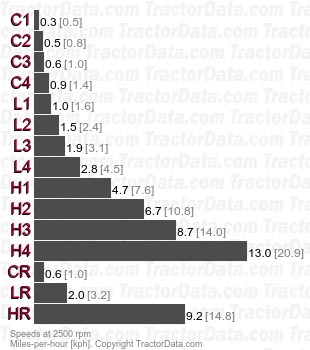

Speeds
With 12.4x24 rear tires.
9528  unsynchronized gear speeds
