Tractors > John Deere > 7230R

John Deere 7230R - transmission

John Deere 7230R tractor photo
2011 - 2017   7R Series
Model years
Row-Crop tractor
Previous model:John Deere 7830
Next model:John Deere 7250R
Series next:John Deere 7260R
Series back:John Deere 7215R
more John Deere 7230R specifications...






Transmission:

Transmission:John Deere PowrQuad Plus
Type:partial power shift
Gears:16 forward and reverse
Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Push-button power shifting between gears. Synchronized shifting between ranges using the foot clutch, or de-clutch button. Power shuttle shifting between forward and reverse.
Speeds:With Group 47 rear tires.

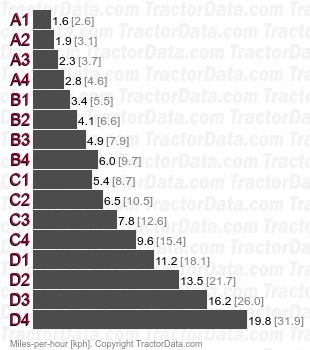

7230R PowrQuad Plus partial power shift speeds


Transmission:

Transmission:John Deere AutoQuad Plus
Type:partial power shift
Gears:20 forward and reverse
The AutoQuad transmission adds automatic shifting to the PowrQuad. The tractor will automatically shift between two or all four gears within a range to maintain load.
Speeds:With Group 47 rear tires.

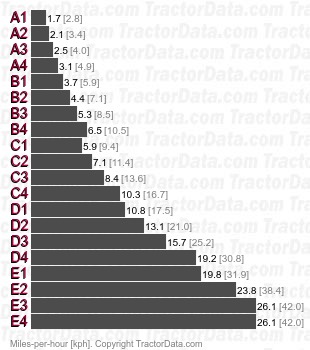

7230R AutoQuad Plus partial power shift speeds


Transmission:

Transmission:John Deere CommandQuad Eco
Type:power shift
Gears:20 forward and reverse
The CommandQuad transmission uses a single shift control lever, with automatic gear and range shifting. CommandQuad available with 40 kph or 50 kph top speeds.
Speeds:With Group 47 rear tires. 40 kph transmission has lower speeds in E3 and E4.
7230R CommandQuad Eco power shift speeds


Transmission:

Transmission:John Deere AutoPowr IVT
Type:infinitely variable transmission
Gears:infinite forward and reverse
