Tractors > John Deere > 7230R

John Deere 7230R - tests

John Deere 7230R tractor photo
2011 - 2017   7R Series
Model years
Row-Crop tractor
Previous model:John Deere 7830
Next model:John Deere 7250R
Series next:John Deere 7260R
Series back:John Deere 7215R
more John Deere 7230R specifications...


OCED Tractor Test 2022:

Nebraska summary:821

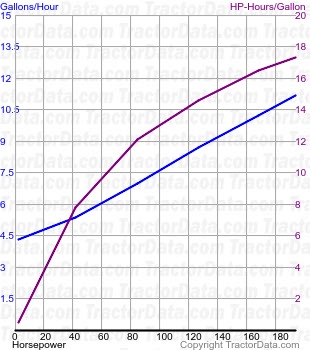

7230R fuel use from test 821
Test Date:May 1 - 15, 2012
Type:Diesel CommandQuad 4WD
PTO power (max):225.07 hp [167.8 kW]
PTO fuel use (max):12.0 gal/hour [45.4 l/hour]
PTO power (rated engine speed):193.37 hp [144.2 kW]
PTO fuel use (engine speed):11.2 gal/hour [42.4 l/hour]
PTO power (rated PTO speed):216.63 hp [161.5 kW]
PTO fuel use (PTO speed):12.0 gal/hour [45.4 l/hour]
Drawbar power (max):179.34 hp [133.7 kW]
Drawbar fuel use (max):11.4 gal/hour [43.1 l/hour]
Drawbar pull (max):21678 lbs [9833 kg]
Max pull gear:A3
Test report:PDF file
