John Deere 7200R Transmission


John Deere 7200R tractor photo
2011 - 2013
7R Series
Row-Crop tractor
7630
Series:7200R7215R
7210R
Transmissions overview
16-speed partial power shift
20-speed partial power shift
20-speed power shift
infinitely variable transmission
Transmission
Transmission:John Deere PowrQuad Plus
Type:partial power shift
Gears:16 forward and reverse
Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Push-button power shifting between gears. Synchronized shifting between ranges using the foot clutch, or de-clutch button. Power shuttle shifting between forward and reverse.
Speeds
With Group 47 rear tires.

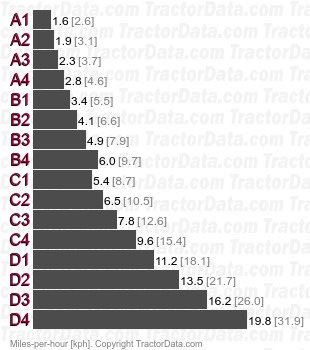

7200R PowrQuad Plus partial power shift speeds
Transmission
Transmission:John Deere AutoQuad Plus
Type:partial power shift
Gears:20 forward and reverse
The AutoQuad transmission adds automatic shifting to the PowrQuad. The tractor will automatically shift between two or all four gears within a range to maintain load.
Speeds
With Group 47 rear tires.
7200R AutoQuad Plus partial power shift speeds
Transmission
Transmission:John Deere CommandQuad Eco
Type:power shift
Gears:20 forward and reverse
The CommandQuad transmission uses a single shift control lever, with automatic gear and range shifting. CommandQuad available with 40 kph or 50 kph top speeds.
Speeds
With Group 47 rear tires. 40 kph transmission has lower speeds in E3 and E4.

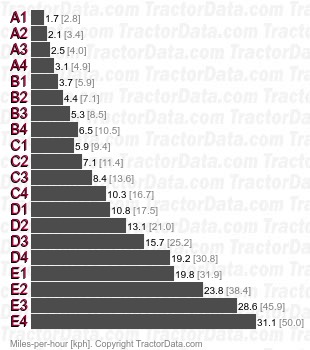

7200R CommandQuad Eco power shift speeds
Transmission
Transmission:John Deere AutoPowr IVT
Type:infinitely variable transmission
Gears:infinite forward and reverse
