John Deere 6506 Transmission


John Deere 6506 tractor photo
1995 - 1997
6000 Series
Row-Crop tractor
Series map:
6506
6600
78.3kw
82.0kw
Transmissions overview
20-speed partial power shift
16-speed
24-speed
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears20 forward and reverse
Clutchwet disc
Four power shift gears (1-4) in five ranges (A-E) with power shuttle.

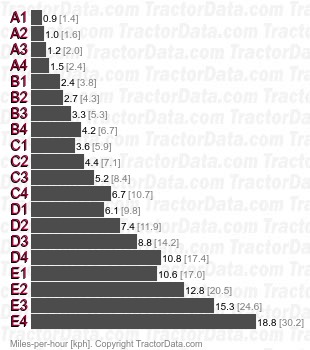

Speeds
With 18.4-38 rear tires.
6506 PowrQuad partial power shift speeds
Transmission
TransmissionJohn Deere PowrQuad
Gears16 forward and 12 reverse
Transmission
TransmissionJohn Deere PowrQuad
Gears24 forward and 16 reverse
