John Deere 5603 - transmission

No photo available
Utility tractor
more John Deere 5603 specifications...






Transmission:

Type:unsynchronized gear
Gears:9 forward and 3 reverse
Clutch:dry 280mm disc
Oil capacity:42.3 qts [40.0 L]
Three gears (1-3) in three ranges (A-C) plus reverse range. Tractor must be stopped, and clutch used, before shifting range or gear.

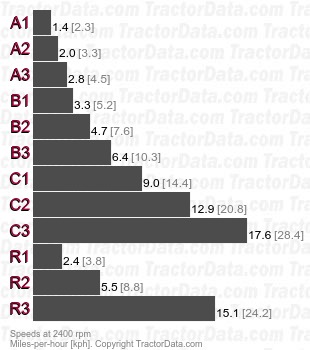

Speeds:With 18.4-30 R1 rear tires.
5603  unsynchronized gear speeds
