John Deere 3200 Transmission


John Deere 3200 tractor photo
1995 - 1998
Utility tractor
Renault built
Series:310032003300
3210
Transmissions overview
10-speed synchronized
20-speed synchronized
20-speed two-speed power shift
Transmission
Type:synchronized
Gears:10 forward and reverse
Five synchronized gears in two ranges with synchronized shuttle.
Speeds

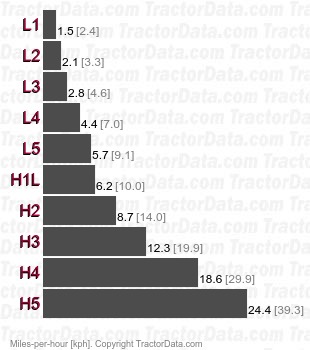

3200  synchronized speeds
Transmission
Type:synchronized
Gears:20 forward and reverse
Optional mechanical splitter doubles the numbers of speeds in the base transmission. Clutch must be used with mechanical splitter. Also available with an optional creeper range, providing 30 total speeds in each direction.
Speeds

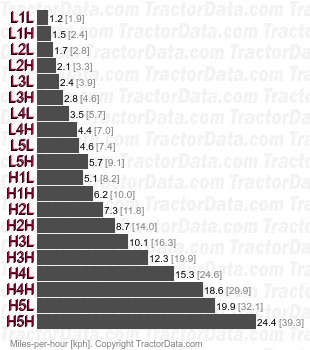

3200  synchronized speeds
Transmission
Transmission:Twinshift
Type:two-speed power shift
Gears:20 forward and reverse
The Twinshift provides a push-button splitter to the base transmission.
Speeds
3200 Twinshift two-speed power shift speeds
