John Deere 6430 Premium Transmission
|
|
| Series: | 6330 Premium ← | 6430 Premium |
| Transmissions overview | |
| 16-speed partial power shift | |
| 24-speed partial power shift | |
| infinitely variable transmission |
| Transmission | |
| Transmission: | John Deere PowrQuad Plus |
| Type: | partial power shift |
| Gears: | 16 forward and reverse |
| Oil capacity: | 51.6 qts 48.8 L |
| Four gears (1-4) in four ranges (A-D) with reverser. Push-button power shifts between gears. Range shift lever is synchronized using foot or optional push-button hand clutch. Reverser lever provides power shuttle between forward and reverse. | |

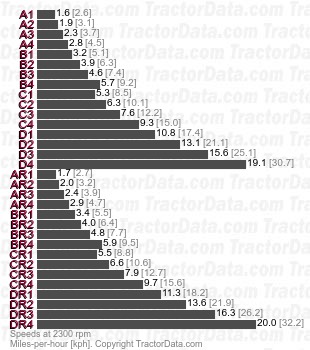

| Speeds | |
| With 18.4R38 rear tires. | |
|
| Transmission | |
| Transmission: | John Deere AutoQuad Plus |
| Type: | partial power shift |
| Gears: | 24 forward and reverse |
| Oil capacity: | 52.8 qts 50.0 L |
| Four gears (1-4) in six ranges (A-F) with reverser. Similar to PowrQuad with added Auto mode. Auto mode automatically shifts gears to match load and throttle position. | |
| Speeds | |
| With 18.4R38 rear tires. Reverse speeds slightly faster than forward. | |
|
| Transmission | |
| Transmission: | John Deere IVT |
| Type: | infinitely variable transmission |
| Gears: | infinite forward and reverse |
| Oil capacity: | 63.8 qts 60.4 L |

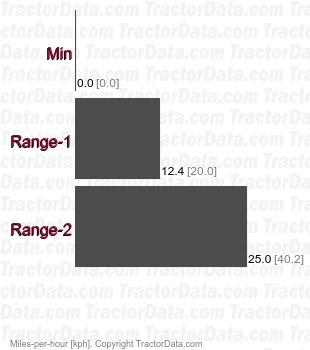

| Speeds | |
|
