Tractors > CaseIH > Puma 230

CaseIH Puma 230 - tests

CaseIH Puma 230 tractor photo
2011 - 2013   Puma Series
Row-Crop tractor
Previous model:CaseIH Puma 225
Next model:CaseIH Puma 240
Series back:CaseIH Puma 215
more CaseIH Puma 230 specifications...






OCED Tractor Test 2645:

Nebraska summary:803

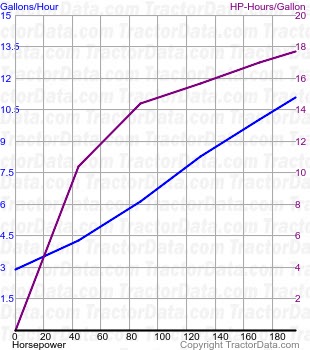

Puma 230 fuel use from test 803
Test Date:January 2011 - May 2011,
Type:Diesel CVT 4WD
PTO power (max):218.5 hp [162.9 kW]
PTO fuel use (max):11.6 gal/hour [43.9 l/hour]
PTO power (rated engine speed):195.9 hp [146.1 kW]
PTO fuel use (engine speed):11.1 gal/hour [42.0 l/hour]
PTO power (rated PTO speed):214.6 hp [160.0 kW]
PTO fuel use (PTO speed):11.5 gal/hour [43.5 l/hour]
Drawbar power (max):165.2 hp [123.2 kW]
Drawbar fuel use (max):11.3 gal/hour [42.8 l/hour]
Drawbar pull (max):18250 lbs [8278 kg]
Max pull gear:5.0 KPH
Test report:PDF file
