John Deere 8335R Tests


John Deere 8335R tractor photo
2011 - 2013
8R Series
Row-Crop tractor
8320R
Series:8310R8335R8360R
8345R
OCED Tractor Test 1990

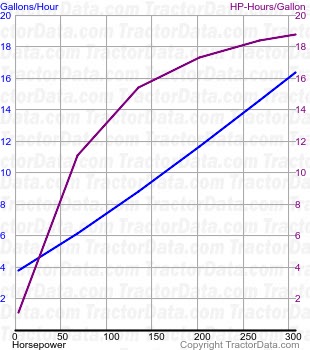

8335R fuel use from test 758
OCED Tractor Test 1990
Diesel 16-speed 4WD
April 6 - 15, 2011
Link: OCED Tractor Test 1990 file
PTO performance
Max power:339.73 hp
253.3 kW
Fuel use:17.8 gal/hour
67.4 l/hour
Power at rated engine speed:306.60 hp
228.6 kW
Fuel use:16.3 gal/hour
61.7 l/hour
Power at rated PTO speed:331.41 hp
247.1 kW
Fuel use:17.5 gal/hour
66.2 l/hour
Drawbar performance
Max power:267.80 hp
199.7 kW
Fuel use:16.4 gal/hour
62.1 l/hour
Gear 8 used for power test.
Max pull:26,284 lbs
11922 kg
Gear 6 used for pull test.
OCED Tractor Test 1990A
8335R fuel use from test 758A
OCED Tractor Test 1990A
Diesel 16-speed 4WD
April 6 - 15, 2011
Link: OCED Tractor Test 1990A file
PTO performance
Max power:339.73 hp
253.3 kW
Fuel use:17.8 gal/hour
67.4 l/hour
Power at rated engine speed:306.60 hp
228.6 kW
Fuel use:16.3 gal/hour
61.7 l/hour
Power at rated PTO speed:331.41 hp
247.1 kW
Fuel use:17.5 gal/hour
66.2 l/hour
Drawbar performance
Max power:267.80 hp
199.7 kW
Fuel use:16.4 gal/hour
62.1 l/hour
Gear 8 used for power test.
Max pull:26,284 lbs
11922 kg
Gear 6 used for pull test.
