Tractors > J.I. Case > 1896

J.I. Case 1896 - tests

J.I. Case 1896 tractor photo
1984 - 1985
Next model:CaseIH 1896
Series next:J.I. Case 2096
more J.I. Case 1896 specifications...

Note: the J.I. Case model 1896 is the same as the CaseIH 1896. The following data is from the 1896 listing.

Nebraska Tractor Test 1548:

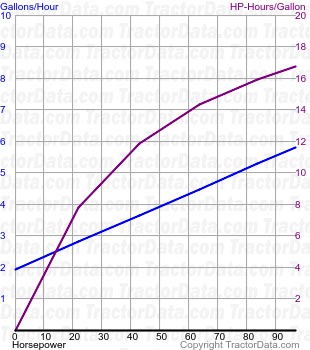

1896 fuel use from test 1548
Test Date:October 24 - November 7, 1984
Type:Diesel 12-speed 2WD
PTO power (rated engine speed):95.92 hp [71.5 kW]
PTO fuel use (engine speed):5.7 gal/hour [21.6 l/hour]
Drawbar power (max):84.51 hp [63.0 kW]
Drawbar fuel use (max):5.7 gal/hour [21.6 l/hour]
Drawbar pull (max):12,357 lbs [5605 kg]
Max pull gear:1-2
Test report:PDF file
