Ascot Universal 550 - transmission

No photo available
more Ascot Universal 550 specifications...





Note: the Ascot Universal model 550 is the same as the UTB/Universal 550. The following data is from the 550 listing.


Transmission:

Type:constant mesh
Gears:12 forward and 3 reverse
Clutch:dry disc
Four gears (1-4) plus reverse (R) in three ranges (creeper, low, and high). Gears 3 and 4 are synchronized.
Speeds:With 14.9x28 rear tires.
550  constant mesh speeds


Transmission:

Type:shuttle
Gears:8 forward and reverse
Clutch:dry disc
Speeds:With 14.9x28 rear tires. Reverse speeds are 15% faster than forward.

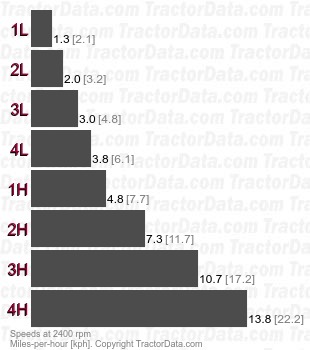

550  shuttle speeds
