Tractors > John Deere > 5070M

John Deere 5070M - engine

John Deere 5070M tractor photo
2009 - 2013   5M Series
Utility tractor
Series next:John Deere 5080M
more John Deere 5070M specifications...

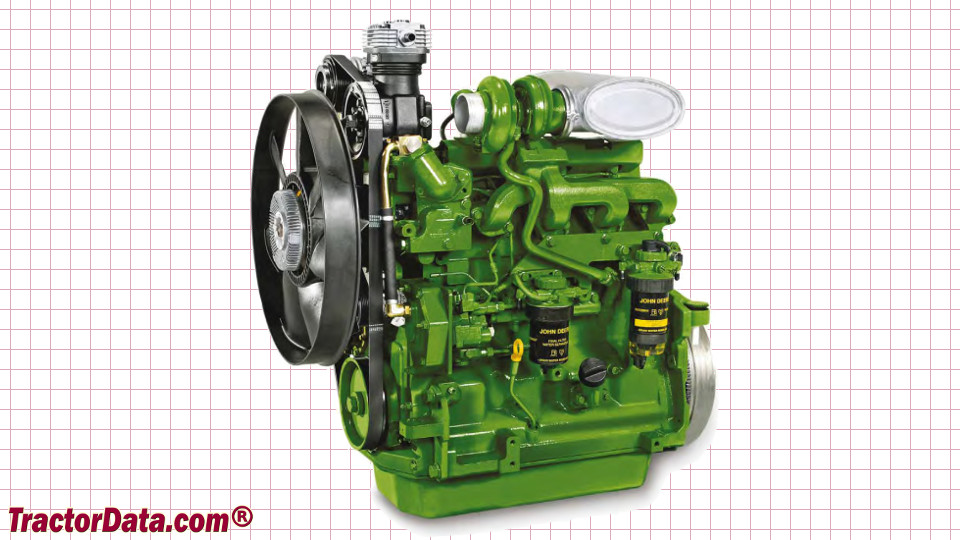

Engine Detail:

 John Deere 4045HL286
 turbocharged diesel
 4-cylinder
 liquid-cooled
 276 ci [4.5 L]
Bore/Stroke:4.19x5.00 inches [106 x 127 mm]
Emissions:Tier III
Rated Power (EC 97/98):70 hp [52.2 kW]
Maximum Power (EC 97/68):71 hp [52.9 kW]
Rated RPM:2200
Idle RPM:875-2350
Operating RPM:1500-2200
Torque:215 lb-ft [291.5 Nm]
Torque RPM:1600
Firing order:1-3-4-2
Starter:electric
Starter volts:12
Intake valve clearance:0.014 inches [0.356 mm]
Exhaust valve clearance:0.018 inches [0.457 mm]
