John Deere 6510S Transmission


John Deere 6510S tractor photo
1999 - 2002
6000 TEN Series
Orchard/Vineyard tractor
Series:6410S6510S
Transmissions overview
12-speed fully synchronized
16-speed power shuttle
16-speed partial power shift
38-speed four-speed power shift
Transmission
Transmission:John Deere SyncroPlus
Type:fully synchronized
Gears:12 forward and 4 reverse
Oil capacity:54.8 qts
51.9 L
Oil type:
-10oF [-23oC] : JD HY-GARD
86oF [30oC] : Low-Visocosity HY-GARD

Three gears, plus reverse, in four ranges.
Speeds
With 18.4-30 rear tires.

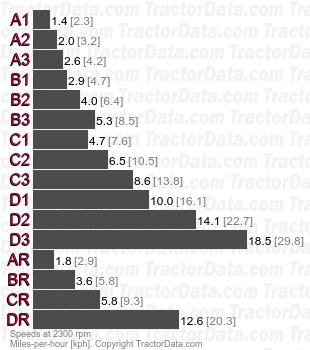

6510S SyncroPlus fully synchronized speeds
Transmission
Transmission:John Deere SyncroPlus Power Reverser
Type:power shuttle
Gears:16 forward and reverse
Four synchronized gears, plus reverse, in four ranges with power shuttle.
Transmission
Transmission:John Deere PowrQuad
Type:partial power shift
Gears:16 forward and reverse
Oil capacity:51.6 qts
48.8 L
Oil type:
-10oF [-23oC] : JD HY-GARD
86oF [30oC] : Low-Visocosity HY-GARD

Four power shift gears in four synchronized ranges, with reverser.
Speeds
With 18.4-30 rear tires.

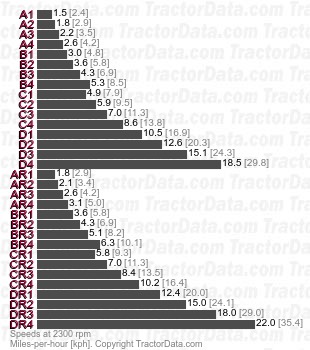

6510S PowrQuad partial power shift speeds
Transmission
Transmission:PowrQuad Creeper
Type:four-speed power shift
Gears:38 forward and reverse
Creeper option adds an additional low-speed for ranges A, B, and C.
Speeds

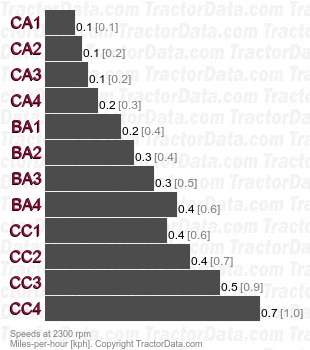

6510S PowrQuad Creeper four-speed power shift speeds
