John Deere 6410L Engine
|
|
| Engine Detail | |
| John Deere 4045 | |
| turbocharged diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 276 ci 4.5 L |
| Bore/Stroke: | 4.19x5.00 inches 106 x 127 mm |
| Power (gross): | 104 hp 77.6 kW |
| Rated RPM: | 2300 |
| Torque: | 325 lb-ft 440.7 Nm |
| Torque RPM: | 1400 |
| Firing order: | 1-3-4-2 |
| Starter: | electric |
| Starter volts: | 12 |
| Starter power: | 4 hp 3.0 kW |
| Coolant capacity: | 11.6 qts 11.0 L |
| Intake valve clearance: | 0.014 inches 0.356 mm |
| Exhaust valve clearance: | 0.018 inches 0.457 mm |

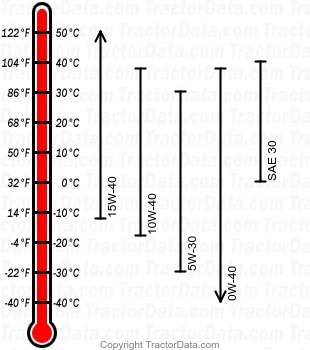

| Engine Oil | |
| |
| Oil capacity: | 12.8 qts 12.1 L |
