| | 2004 - 2008 |
| TN-A Series | | Utility tractor |
|
| Transmissions overview |
| 12-speed partially synchronized with mechanical shuttle |
| 16-speed partially synchronized with mechanical shuttle |
| 16-speed partially synchronized with power shuttle |
| Transmission |
| Transmission: | Synchro Command
|
| Type: | partially synchronized with mechanical shuttle
|
| Gears: | 12 forward and reverse
|
| Clutch: | 280mm dry cerametallic plate
|
| Four synchronized gears with three ranges. Left-hand synchronized mechanical shuttle requires clutching. |
| Transmission |
| Transmission: | Synchro Command Plus
|
| Type: | partially synchronized with mechanical shuttle
|
| Gears: | 16 forward and reverse
|
| Clutch: | 280mm dry cerametallic plate
|
| Left-hand synchronized mechanical shuttle requires clutching. |

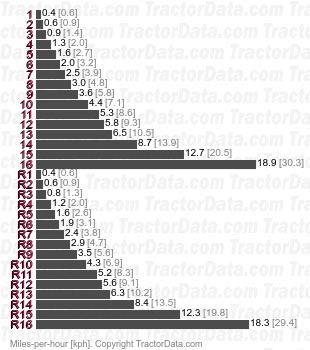

| Speeds |
|
| Transmission |
| Transmission: | Synchro Command Plus
|
| Type: | partially synchronized with power shuttle
|
| Gears: | 16 forward and reverse
|
| Clutch: | six 113mm wet organic plates
|
| Left-hand clutchless power shuttle. |
