Tractors > CaseIH > Farmall 95C

CaseIH Farmall 95C - transmission

CaseIH Farmall 95C tractor photo
2008 - 2015   Farmall C Series
Model years
Utility tractor
Previous model:CaseIH JX1095C
Series back:CaseIH Farmall 85C
more CaseIH Farmall 95C specifications...






Transmission:

Type:mechanical shuttle
Gears:16 forward and reverse
Clutch:dry disc
Four synchronized gears (1-4) in four ranges (L/ML/MH/H) with synchronized mechanical shuttle.
Speeds:

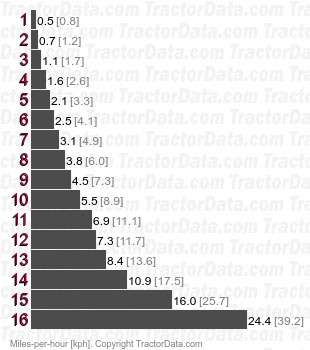

Farmall 95C  mechanical shuttle speeds


Transmission:

Type:power shuttle
Gears:16 forward and reverse
Clutch:wet disc
Four synchronized gears (1-4) in four ranges (L/ML/MH/H) with clutchless power shuttle.
Speeds:
Farmall 95C  power shuttle speeds
