Tractors > CaseIH > Farmall 90

CaseIH Farmall 90 - tests

CaseIH Farmall 90 tractor photo
2008 -    Farmall Utility Series
Utility tractor
Previous model:CaseIH JX90
Series next:CaseIH Farmall 95
Series back:CaseIH Farmall 80
more CaseIH Farmall 90 specifications...






OCED Tractor Test 2509:

Nebraska summary:763

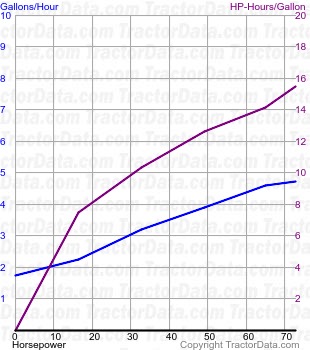

Farmall 90 fuel use from test 763
Test Date:December 2008 - 2008,
Type:Diesel 12-speed 4WD
PTO power (max):73.5 hp [54.8 kW]
PTO fuel use (max):4.7 gal/hour [17.8 l/hour]
PTO power (rated engine speed):72.7 hp [54.2 kW]
PTO fuel use (engine speed):4.7 gal/hour [17.8 l/hour]
PTO power (rated PTO speed):70.3 hp [52.4 kW]
PTO fuel use (PTO speed):4.4 gal/hour [16.7 l/hour]
Drawbar power (max):65.2 hp [48.6 kW]
Drawbar fuel use (max):4.5 gal/hour [17.0 l/hour]
Drawbar pull (max):7,265 lbs [3295 kg]
Max pull gear:II-2
Test report:PDF file
