Tractors > Challenger > MT675C

Challenger MT675C - engine

No photo available
2009 - 2010   MT600C Series
Row-Crop tractor
Next model:Challenger MT675D
Series next:Challenger MT685C
Series back:Challenger MT665C
more Challenger MT675C specifications...






Engine Detail:

The engine uses AGCO's e3 selective catalytic reduction (SCR) system to reduce nitrogen oxides (NOx). An exhaust-gas recirculation (IEGR) version of the engine was optionally available.

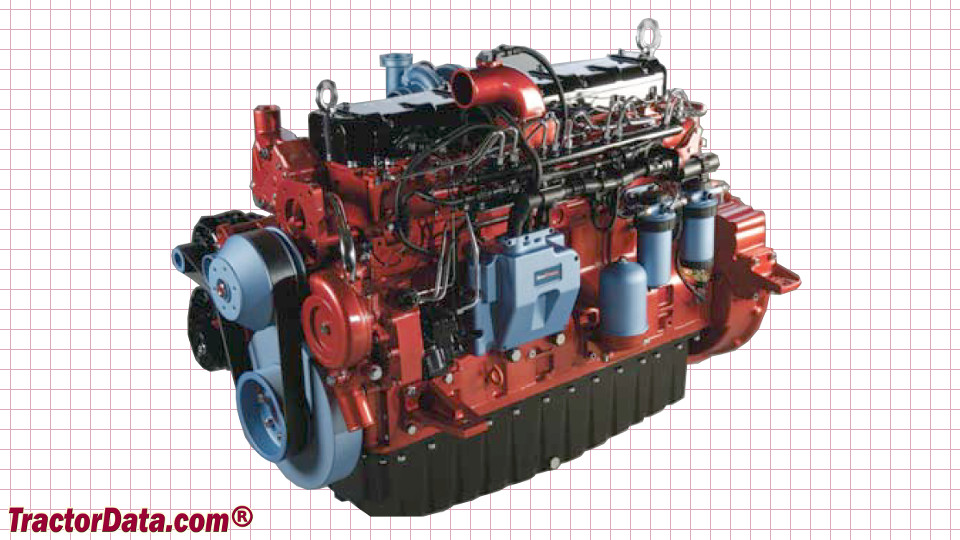

 AGCO SISU POWER 84CTA
 turbocharged intercooled diesel
 6-cylinder
 liquid-cooled
 512.6 ci [8.4 L]
Bore/Stroke:4.37x5.71 inches [111 x 145 mm]
Emissions:Interim Tier 4
Emission control:selective catalytic reduction (SCR)
 integrated exhaust gas recirculation (IECR) optional
Power (gross):320 hp [238.6 kW]
Maximum Power:350 hp [261.0 kW]
Fuel system:electronic high-pressure common rail
Air cleaner:dual paper elements
Compression:16.7:1
Rated RPM:2200
Torque:1100 lb-ft [1491.6 Nm]
Torque RPM:1500
Starter:electric
Starter volts:12
