| | 1989 - 1992 |
| TU 7 Series | | Compact Utility tractor |
|
Series map:
TU197
TU217
13.9kw
15.4kw
| Engine Detail |
| Isuzu E3AE1 |
| diesel |
| 3-cylinder |
| liquid-cooled |
| Displacement | 79.1 ci
1.3 L
|
| Bore/Stroke | 3.15x3.386 inches
80 x 86 mm
|
| Power | 18.7 hp
13.9 kW
|
| Rated RPM | 2500
|
| Starter | electric
|
| Starter volts | 12
|
| Coolant capacity | 7.4 qts
7.0 L
|

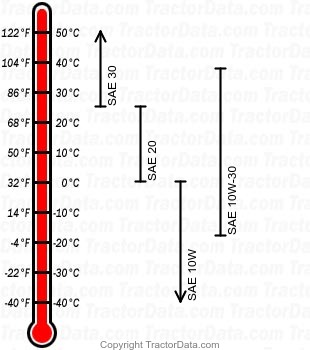

| Engine Oil |
|
| Oil capacity | 4.5 qts
4.3 L
|

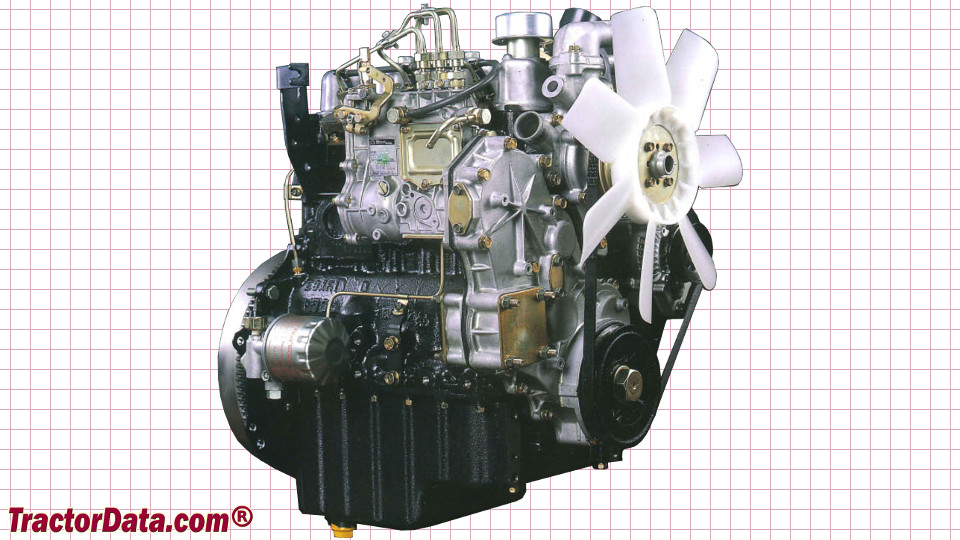

| Iseki TU197 Engine |
 |
