Iseki TL3200

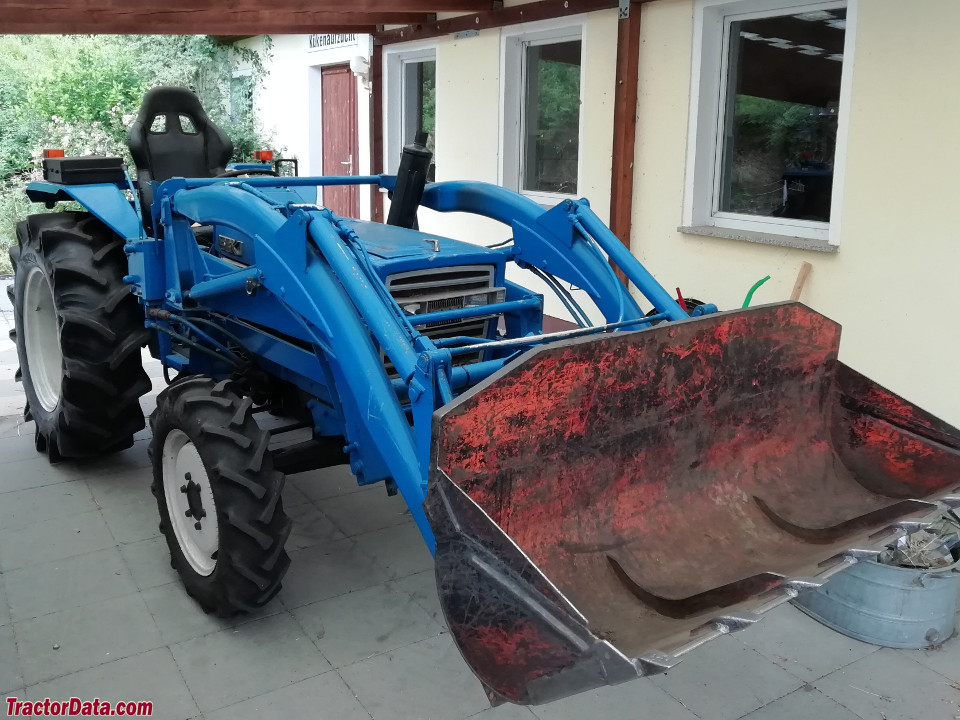

Iseki TL3200 tractor photo
1980 - 1985
TL Series
Compact Utility tractor
Series map:
TL2900
TL3200
TL4200
21.3kw
23.6kw
30.9kw
Production
ManufacturerIseki
Compact Utility tractor
Variants
TL3200F4WD
Iseki TL3200 Engine
Isuzu 1.5L 4-cyl diesel
Fuel tank10.6 gal
40.1 L
Engine details ...
Iseki TL3200 Power
Engine31.6 hp
23.6 kW
Mechanical
Two- or four-wheel drive
Open operator station. Four-post ROPS available.
Tractor hitch
Rear TypeJIS1
Power Take-off (PTO)
Rear RPM540 (1.375)
Engine RPM593@2600
722@2600
945@2600
1540@2600
Dimensions & Tires
Wheelbase70.9 inches
180 cm
Weight2910 to 3175 pounds
Front tire6.00-16
2WD Rear tire13.6-26
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References
TL3200 references literature
TL published in 1984, by Iseki
TL2900 - TL3200 - TL4200
TL3200 published in 1984, by Iseki
