Tractors > Iseki > TL2301

Iseki TL2301 Engine



Iseki TL2301 tractor photo
1980 - 1985
TL-01 Series
Compact Utility tractor
Series map:
TL2101
TL2301
TL2501
15.4kw
16.9kw
18.4kw
Engine Detail
Isuzu E3AG1
diesel
3-cylinder
liquid-cooled
Displacement87.2 ci
1.4 L
Bore/Stroke3.307x3.385 inches
84 x 86 mm
Power22.7 hp
16.9 kW
Rated RPM2600
Starterelectric
Starter volts12
Coolant capacity7.4 qts
7.0 L
Engine Oil

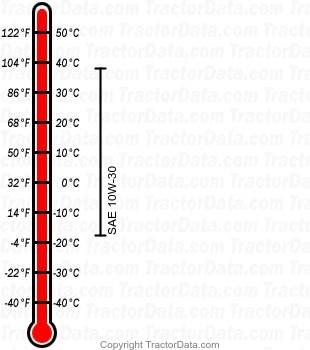

TL2301 diesel engine oil chart
Oil capacity5.1 qts
4.8 L
Iseki TL2301 Engine

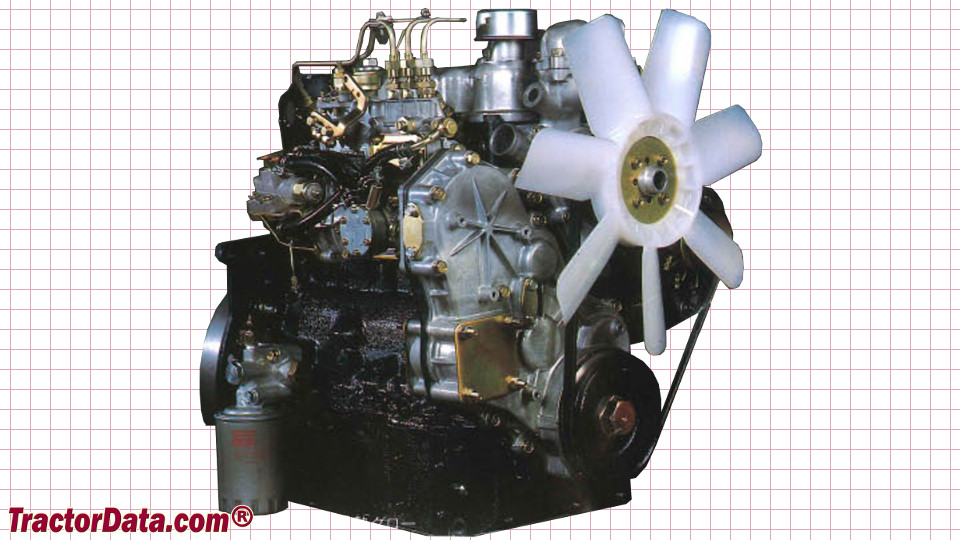

Iseki TL2301 engine image
