Super MV ↑ | |
Series: | 400 Hi-Clear |
450 Hi-Clear ↓ |
Engines overview | |
International Harvester 4.3L 4-cyl gasoline | |
International Harvester 4.3L 4-cyl diesel | |
International Harvester 4.3L 4-cyl LP gas |
Engine Detail | |
International Harvester C264 | |
gasoline | |
4-cylinder | |
liquid-cooled vertical I-head | |
Displacement: | 264 ci 4.3 L |
Bore/Stroke: | 4.00x5.25 inches 102 x 133 mm |
Fuel system: | 1.25-inch updraft carburetor |
Air cleaner: | oil bath |
Compression: | 6.3:1 |
Rated RPM: | 1450 |
Idle RPM: | 400-1600 |
Firing order: | 1-3-4-2 |
Starter volts: | 6 |
Coolant capacity: | 26 qts 24.6 L |
Sparkplug gap: | 0.023 inches 0.584 mm |
Intake valve clearance: | 0.017 inches 0.432 mm (hot) |
Exhaust valve clearance: | 0.017 inches 0.432 mm (hot) |

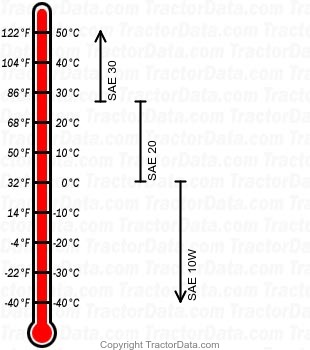

Engine Oil | |
Oil capacity: | 8 qts 7.6 L |
Oil change: | 150 h |
Engine Detail | |
International Harvester | |
diesel | |
4-cylinder | |
liquid-cooled vertical I-head | |
Displacement: | 264 ci 4.3 L |
Bore/Stroke: | 4.00x5.25 inches 102 x 133 mm |
Air cleaner: | oil bath |
Compression: | 16.5:1 |
Rated RPM: | 1450 |
Firing order: | 1-3-4-2 |
Starter volts: | 12 |
Coolant capacity: | 29 qts 27.4 L |

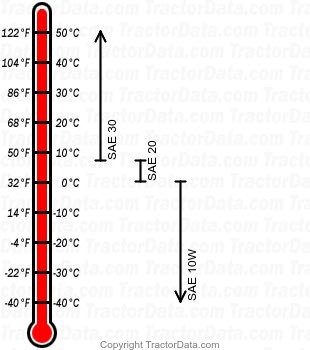

Engine Oil | |
Oil capacity: | 9 qts 8.5 L |
Engine Detail | |
International Harvester | |
LP gas | |
4-cylinder | |
liquid-cooled vertical I-head | |
Displacement: | 264 ci 4.3 L |
Bore/Stroke: | 4.00x5.25 inches 102 x 133 mm |
Compression: | 8.33:1 |
Rated RPM: | 1450 |
Firing order: | 1-3-4-2 |
Coolant capacity: | 26 qts 24.6 L |
