Hesston 80-90 Transmission



Hesston 80-90 tractor photo
1990
90 Series
Utility tractor
Fiat built
Series:70-90 ← 80-90
Transmissions overview
12-speed synchromesh
12-speed mechanical shuttle
20-speed creeper
Transmission
Type:synchromesh
Gears:12 forward and 4 reverse
Clutch:279.4mm dry disc
Four gears (1-4) in three ranges (I-III) plus reverse range.
Speeds

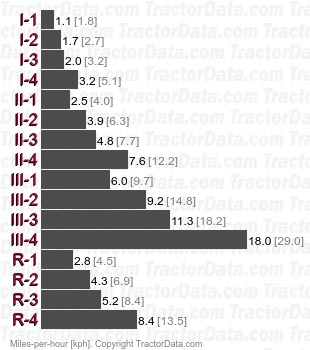

80-90 synchromesh speeds
Transmission
Type:mechanical shuttle
Gears:12 forward and reverse
Speeds
With 18.4-30 rear tires.

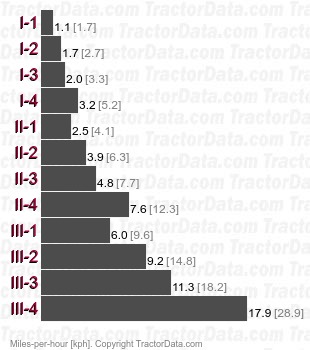

80-90 mechanical shuttle speeds
Transmission
Type:creeper
Gears:20 forward and 8 reverse
Speeds
With 18.4-30 rear tires.

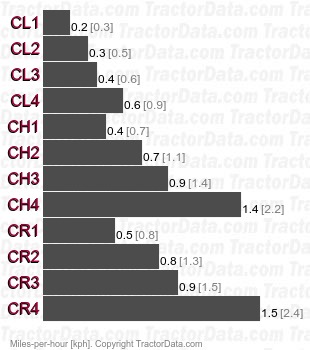

80-90 creeper speeds
