Hesston 80-66 Transmission


Hesston 80-66 tractor photo
1985 - 1991
66 Series
Utility tractor
Fiat built
Series map:
70-66
80-66
70.0hp
80.0hp
Transmissions overview
12-speed partially synchronized
12-speed mechanical shuttle
20-speed creeper
Transmission
Typepartially synchronized
Gears12 forward and 4 reverse
Four gears (1-4) in three ranges (I-III). Shifts between gears are synchronized.
Speeds
With 18.4-30 rear tires.

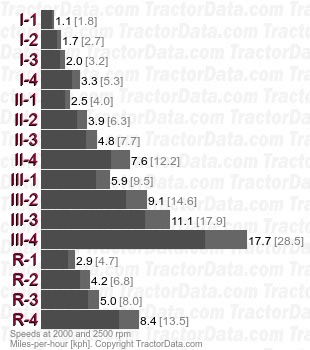

80-66  partially synchronized speeds
Transmission
Typemechanical shuttle
Gears12 forward and reverse
Four gears (1-4) in three ranges (I-III) with shuttle.
Speeds
With 18.4-30 rear tires.
80-66  mechanical shuttle speeds
Transmission
Typecreeper
Gears20 forward and 8 reverse
Four gears (1-4) in three ranges (I-III) with normal and creeper ranges.
Speeds
With 18.4-30 rear tires.

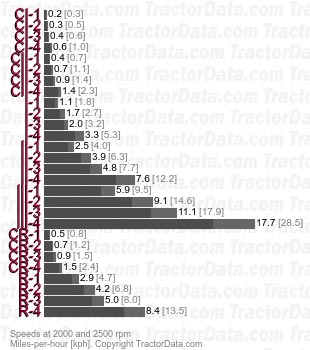

80-66  creeper speeds
