Hesston 780 Transmission


Hesston 780 tractor photo
1981 - 1984
80 Series
Utility tractor
Series:680780880-5
Transmissions overview
8-speed partially synchronized
16-speed
8-speed mechanical shuttle
Transmission
Type:partially synchronized
Gears:8 forward and 2 reverse
Four gears with high and low ranges provide eight forward speeds. Gears 3/4 are synchronized in both ranges.
Speeds
With 18.4-30 rear tires.
780  partially synchronized speeds
Transmission
Gears:16 forward and 4 reverse
Four gears with four ranges provides sixteen forward speeds.
Speeds
With 18.4-30 rear tires.
780   speeds
Transmission
Type:mechanical shuttle
Gears:8 forward and reverse
Speeds
With 18.4-30 rear tires.

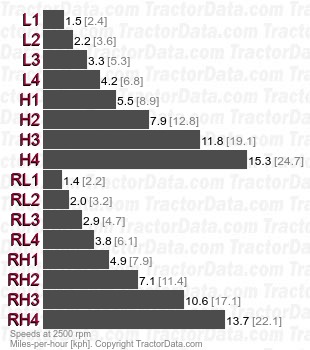

780  mechanical shuttle speeds
