Hesston 680 Transmission



Hesston 680 tractor photo
1981 - 1984
80 Series
Utility tractor
Series:580 ← 680 → 780
Transmissions overview
8-speed partially synchronized
16-speed
8-speed mechanical shuttle
Transmission
Type:partially synchronized
Gears:8 forward and 2 reverse
Four gears with high and low ranges provide eight forward speeds. Gears 3/4 are synchronized in both ranges.
Speeds
With 16.9-30 rear tires.
680 partially synchronized speeds
Transmission
Gears:16 forward and 4 reverse
Four gears with four ranges provides sixteen forward speeds.
Speeds
With 16.9-30 rear tires.
680 speeds
Transmission
Type:mechanical shuttle
Gears:8 forward and reverse
Speeds
With 16.9-30 rear tires.

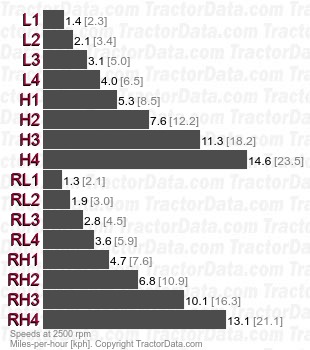

680 mechanical shuttle speeds
