J.I. Case 4994 Transmission


J.I. Case 4994 tractor photo
1984
4WD 94 Series
Four-wheel Drive (4WD) tractor
Series:48944994
4994
Transmission
Type:full power shift
Gears:12 forward and 2 reverse
Oil capacity:63 qts
59.6 L
 59 qts
55.8 L (without PTO)
Oil type:
Case Powergard PTF

Electronically-controlled Case powershift transmission operated with single control lever and inching pedal. The inching pedal must be depressed to move from park/neutral into first gear. Tractor must be moving in first gear before higher gears can be selected. Gear changes made by pushing control lever into upshift or downshift position. Control lever can be held in upshift/downshift position for multiple gear changes.

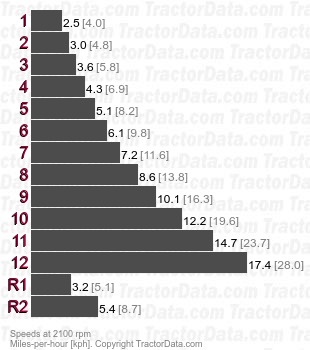

Speeds
With 20.5-32 tires
4994  full power shift speeds
