Cockshutt 770 Tests


Cockshutt 770 tractor photo
1963 - 1967
Row-Crop tractor
Series:660770

Note: the Cockshutt model 770 is the same as the Oliver 770. The following data is from the 770 listing.
Nebraska Tractor Test 648

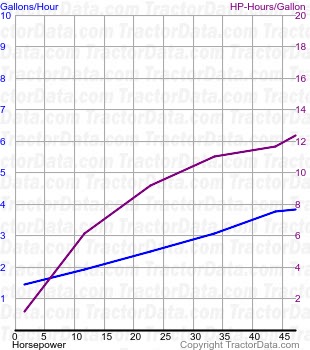

770 fuel use from test 648
Nebraska Tractor Test 648
Gasoline 6-speed 2WD
April 21 - May 7, 1958
Link: Nebraska Tractor Test 648 file
Belt power (max):50.04 hp
37.3 kW
Belt fuel use (max):4.3 gal/hour
16.3 l/hour
Drawbar performance
Max power:42.75 hp
31.9 kW
Gear 4 used for power test.
Max pull:7,000 lbs
3175 kg
Gear 1 used for pull test.
Nebraska Tractor Test 649

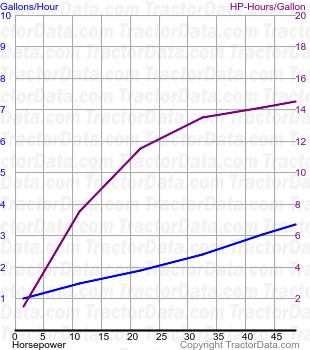

770 fuel use from test 649
Nebraska Tractor Test 649
Diesel 6-speed 2WD
April 23 - May 7, 1958
Link: Nebraska Tractor Test 649 file
Belt power (max):48.80 hp
36.4 kW
Belt fuel use (max):3.4 gal/hour
12.9 l/hour
Drawbar performance
Max power:44.38 hp
33.1 kW
Gear 4 used for power test.
Max pull:7,137 lbs
3237 kg
Gear 1 used for pull test.
