John Deere 8320RT Transmission


John Deere 8320RT tractor photo
2009 - 2010
Agricultural Crawler tractor
Series map:
8295RT
8320RT
8345RT
295.0hp
320.0hp
345.0hp
Transmission
TransmissionJohn Deere PowerShift
Typefull power shift
Gears16 forward and 4 reverse
Oil capacity273.2 qts
258.6 L
Oil type
JD Hy-Gard
Speeds
Speed in R3 at 2300 RPM and R4 at 1500 RPM. Fifth reverse is dealer-installed option.
8320RT PowerShift full power shift speeds
Transmission
TransmissionInfinitely Variable Transmission (IVT)
Gearsinfinite forward and reverse
Oil capacity273.2 qts
258.6 L
Oil type
JD Hy-Gard
Speeds

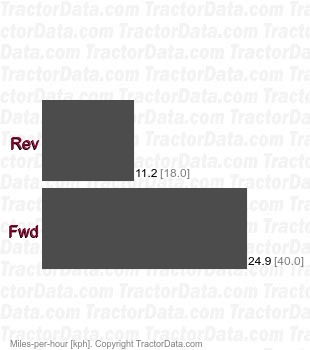

8320RT Infinitely Variable Transmission (IVT)  speeds
