Tractors > CO-OP > 3

CO-OP 3

CO-OP 3 tractor photo
1936 - 1950
Standard-tread tractor






Production:

Distributor:CO-OP
Manufacturer:Duplex Machinery
Factory:Battle Creek, Michigan, USA
 South Saint Paul, Minnesota, USA
 Arthurdale, West Virginia, USA


CO-OP 3 Engine:

   Chrysler 4.0L 6-cyl gasoline
full engine details ...


Capacity:

Fuel:28 gal [106.0 L]


Dimensions & Tires:

Weight:4450 lbs [2018 kg]
Front tire:7.50-16
Rear tire:12.75-28
full dimensions and tires ...


3 Serial Numbers:

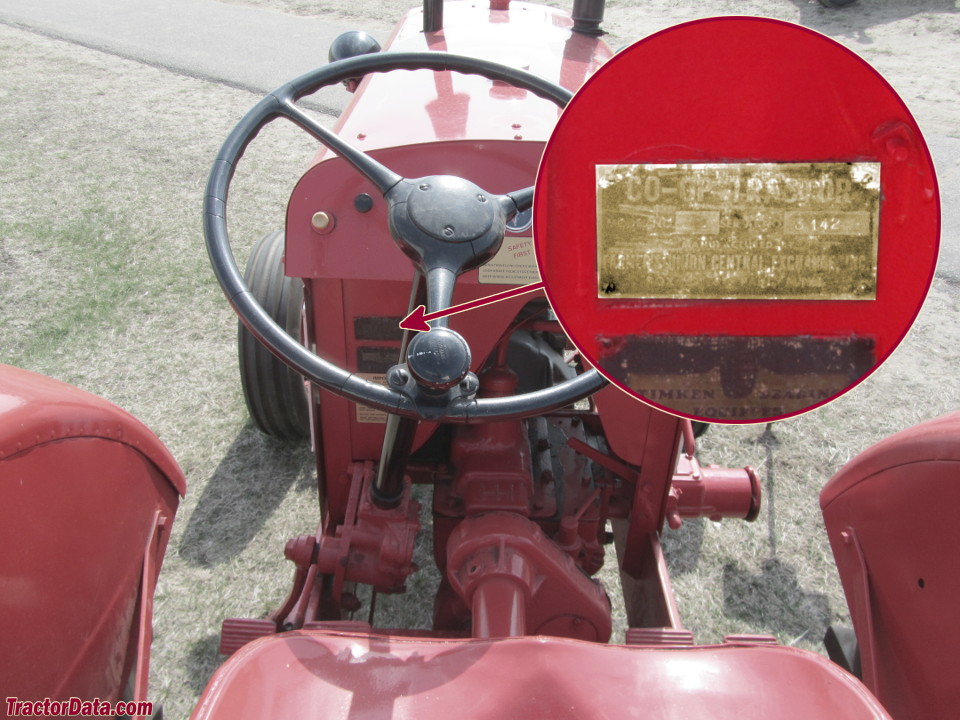

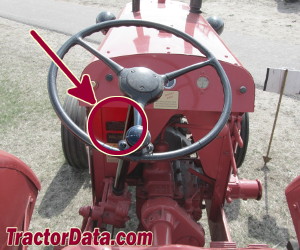

Location:Left side of dashboard

- Serial numbers unknown -



CO-OP 3 Power:

Drawbar (claimed):28 hp [20.9 kW]
PTO (claimed):37 hp [27.6 kW]
Plows:3*14-inch
Drawbar (tested):37.50 hp [28.0 kW]
Belt (tested):42.29 hp [31.5 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Steering:manual
Cab:Open operator station
