Long 310 Transmission


Long 310 tractor photo
1980 - 1990
Utility tractor
UTB/Universal built
Transmissions overview
6-speed sliding gear/constant mesh
8-speed sliding gear/constant mesh
Transmission
Typesliding gear/constant mesh
Gears6 forward and 2 reverse
Clutchdry disc
Oil capacity17 qts
16.1 L
Oil type
LONG Multi-Purpose Tractor Fluid
Gears 2-3 and 5-6 are synchronized.
Speeds
With 11.2-28 rear tires.
310  sliding gear/constant mesh speeds
Transmission
Typesliding gear/constant mesh
Gears8 forward and 2 reverse
Clutch279.4mm dry disc
Oil capacity17 qts
16.1 L
Four gears (1-4), plus reverse (R) in two ranges (low/high). Gears 3-4 are synchronized.

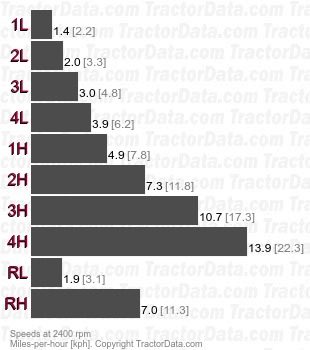

Speeds
With 11.2-28 rear tires.
310  sliding gear/constant mesh speeds
