Tractors > John Deere > 5075M

John Deere 5075M - engine

John Deere 5075M tractor photo
2008 - 2017   5M Series
Model years
Utility tractor
Previous model:John Deere 5325
Series next:John Deere 5085M
Series back:John Deere 5065M
more John Deere 5075M specifications...


Engine Detail:

 John Deere PowerTech 5030
 turbocharged diesel
 186 ci [3.0 L]
Bore/Stroke:3.385x4.134 inches [86 x 105 mm]
Power:75 hp [55.9 kW]
Air cleaner:dry
Rated RPM:2200
Torque:300 lb-ft [406.8 Nm]
Torque RPM:1400
Starter volts:12

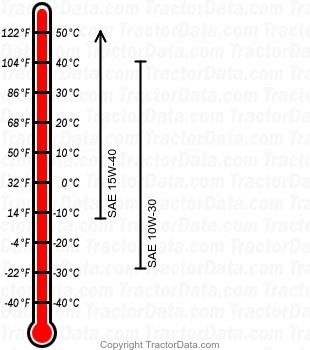

Oil capacity:10.4 qts [9.8 L]
Coolant capacity:10.4 qts [9.8 L]
