John Deere 6130D Engine
|
|
| Engine Detail | |
| John Deere 4045H PowerTech E | |
| intercooled turbocharged diesel | |
| 4-cylinder 8-valve | |
| liquid-cooled | |
| Displacement: | 276 ci 4.5 L |
| Bore/Stroke: | 4.20x5.00 inches 107 x 127 mm |
| Emissions: | Tier 3 |
| Rated Power (EC 97/98): | 129.8 hp 96.8 kW |
| Fuel system: | Denso electronic high-pressure common rail |
| Compression: | 19:1 |
| Rated RPM: | 2100 |
| Idle RPM: | 900-2200 |
| Torque: | 387 lb-ft 524.8 Nm |
| Torque RPM: | 1500 |
| Firing order: | 1-3-4-2 |
| Starter volts: | 12 |
| Coolant capacity: | 17.4 qts 16.5 L |
| Intake valve clearance: | 0.014 inches 0.356 mm |
| Exhaust valve clearance: | 0.018 inches 0.457 mm |

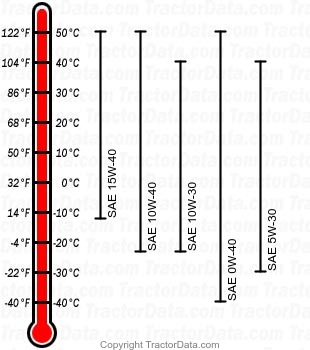

| Engine Oil | |
| |
| Oil capacity: | 15.85 qts 15.0 L |
| Oil change: | 250 h |
| 500 h (JD TorqGARD oil) | |
