Tractors > John Deere > 5045E

John Deere 5045E - transmission

John Deere 5045E tractor photo
2008 - 2017   5E Series
Model years
Utility tractor
Series next:John Deere 5055E
more John Deere 5045E specifications...






Transmission:

Transmission:SyncShuttle
Type:partially synchronized
Oil capacity:41.2 qts [39.0 L]
Oil type:
JD Hy-Gard

Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Shuttle shift between 2 and R in all ranges. Forward gear shifts in-range are synchronized. Shifts between ranges are not synchronized. The SyncShuttle is standard equipment on four-wheel drive models.tran1fwd

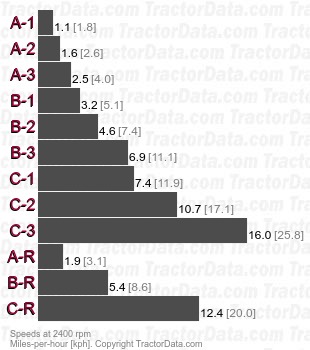

Speeds:With 13.6-28 rear tires.
5045E SyncShuttle partially synchronized speeds
