J.I. Case 2594 Tests


J.I. Case 2594 tractor photo
1984
94 Series
Row-Crop tractor
Series:23942594
2594
Nebraska Tractor Test 1529

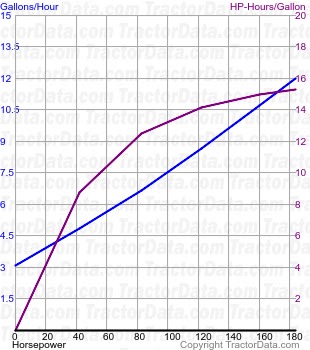

2594 fuel use from test 1529
Nebraska Tractor Test 1529
Diesel 24-speed 2WD
May 31 - June 20, 1984
Link: Nebraska Tractor Test 1529 file
PTO performance
Power at rated engine speed:182.07 hp
135.8 kW
Fuel use:12.0 gal/hour
45.4 l/hour
Drawbar performance
Max power:159.64 hp
119.0 kW
Fuel use:11.9 gal/hour
45.0 l/hour
Gear 3-4 used for power test.
Max pull:16874 lbs
7654 kg
Gear 2-2 used for pull test.
